Rail kit for TS-x79 2U rackmount models

EAN: 4712511123173

UPC: 885022003129

Dimension: 710 x 99 x 68 mm (28.4 x 3.96 x 2.72 inch)

Weight: 3.0kg (3.97lb)

Applied Model: TS-879U-RP/TS-1279U-RP/TS-1679U-RP/TS-EC879U-RP/TS-EC1279U-RP/TS-EC1679U-RP

Remark:



The TS-x79 rack mount models comply with ANSI/EIA-RS-310-D rack mounting standards. Before purchasing the server racks for these models, please make sure the server racks conform to the following criteria:

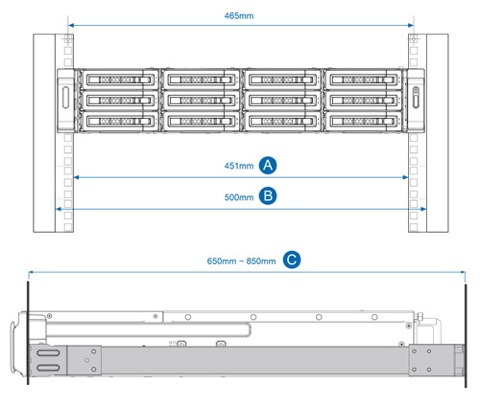

1. Rack size
A. Mounting post width: ≥ 451mm
B . Panel width: ≥ 500mm
C. Mounting post depth: 650mm~850mm

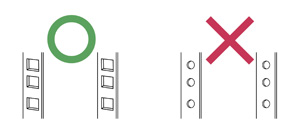

2. The optional rack kits for the TS-x79 rack mount models are only compatible with square-hole server racks.

Rail kit for 2U rackmount models of TS-x69U and TS-x70U

EAN: 4712511123586

UPC: 885022003549

Dimension: 780 x 97 x 55mm (3.07 x 3.82 x 2.17 inch)

Weight: 1.9kg (4.19lb)

Applied Model:

TS-869U-RP/870U-RP/1269U-RP/1270U-RP

Rail kit for 1U rackmount models

EAN: 4712511121896

UPC: 885022001859

Dimension:740 x 90 x 40 mm (29.13 x 3.54 x 1.57 inch)

Weight: 1.8kg (3.97lb)

Applied Model:

TS-410U/419U/439U/459U/459U+/469U
